Residential Renovation

Residential Renovation

A core heating and cooling solution for a residential renovation

Aircraft - Renovation Kitchen Case Study

Installation background

  • Installation Date: Spring 2022
  • Property Type: Renovation of 1990s four bedroom detached family home in Dorset. Unico provides heating and cooling to first floor
  • Unico System: 1218BL1 Blower Module, Variable Speed EC motor, 1218 CL1 Heat Pump Coil

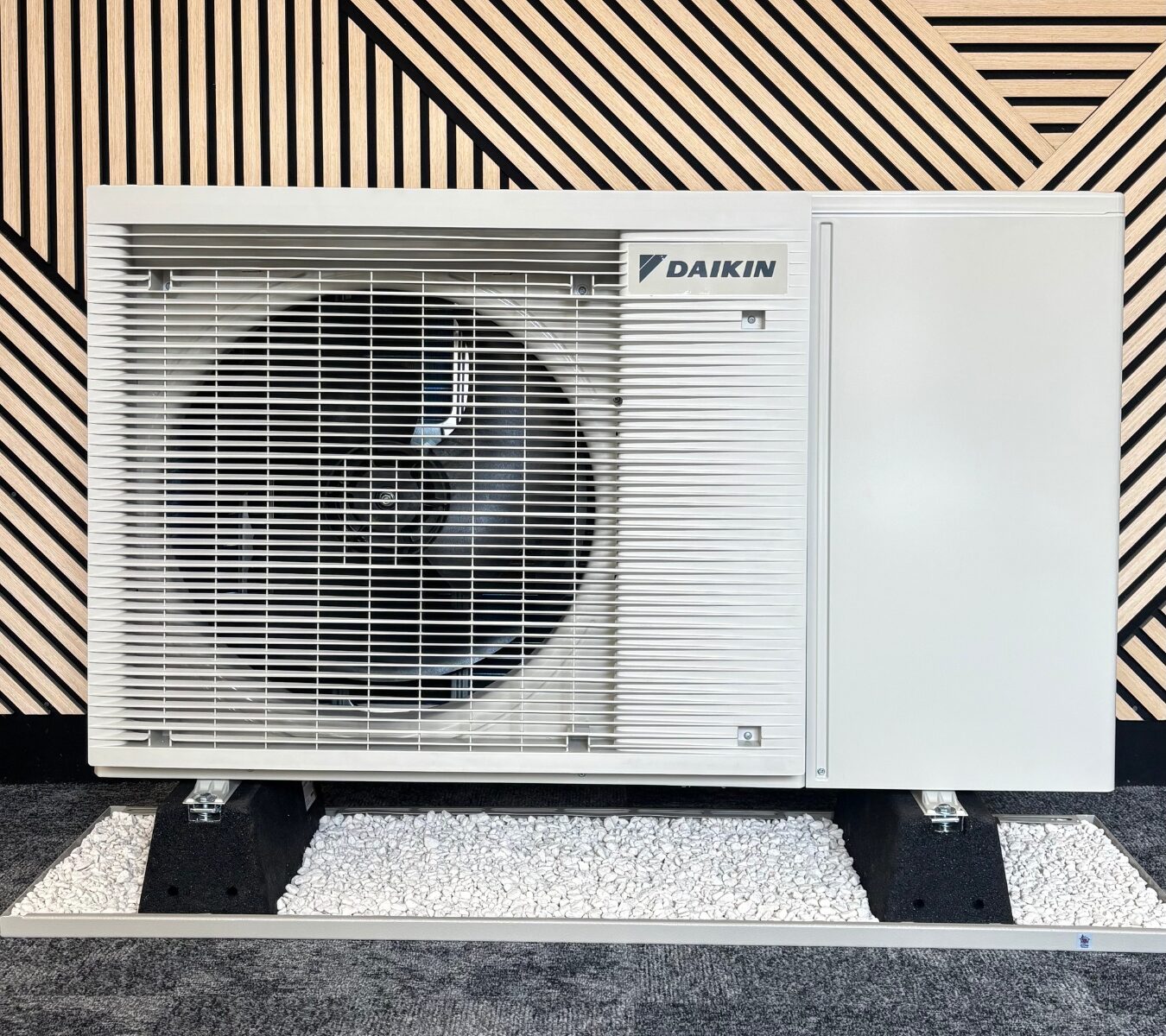

  • Energy Source: Daikin Altherma Low Temperature Split Air Source Heat Pump
  • Controls: Nest Home Automation System and Pro Learning thermostat
  • Additional Technology: Underfloor Heating System to ground floor, intelligent hot water tank for precise hot water delivery, energy saving battery storage utilising low cost overnight tariffs

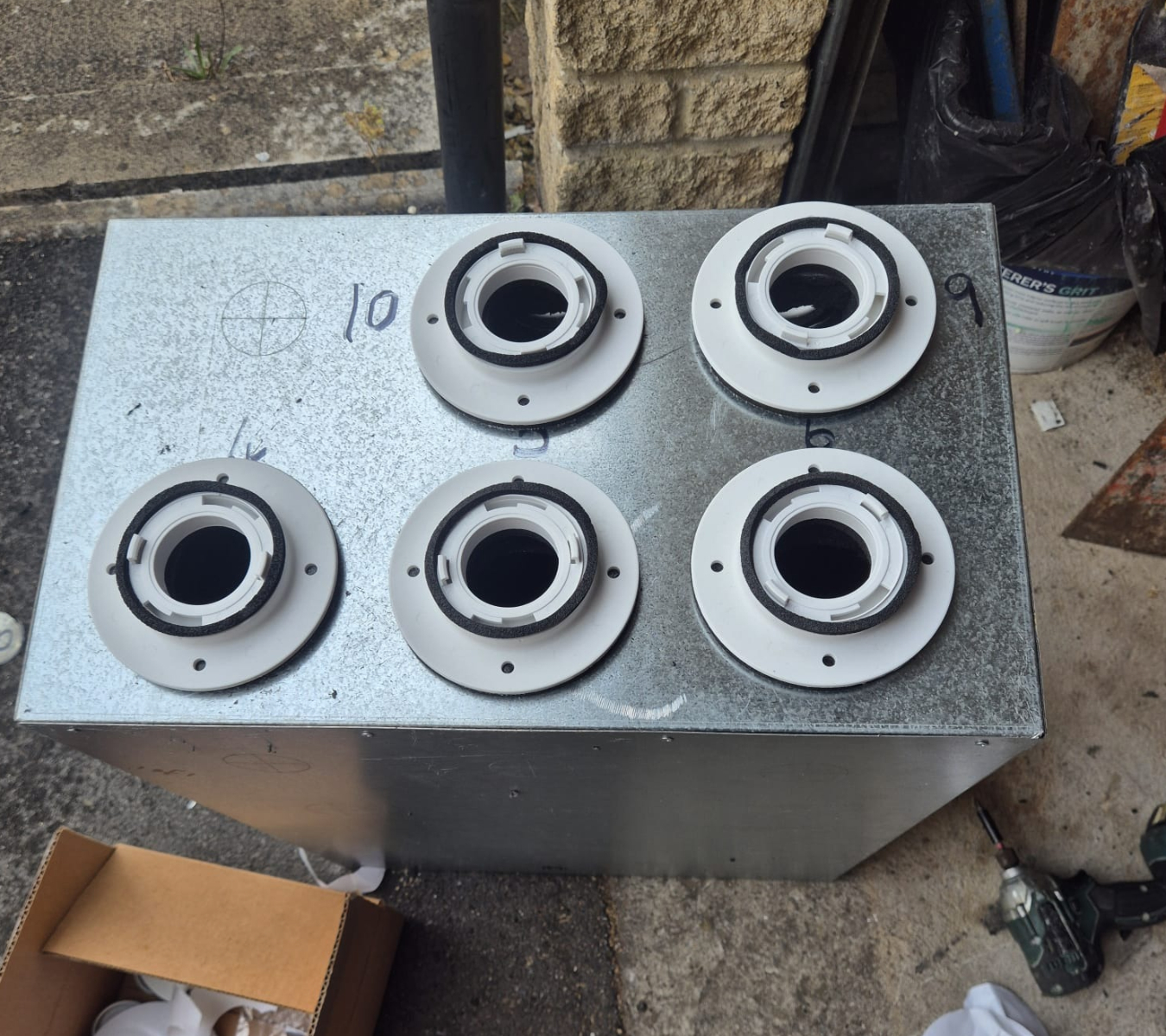

Discreet climate control

Aircraft Renovation bedroom outlet
Unico - Aircraft Renovation bedroom 1
Unico - Aircraft Renovation bedroom 2

Solution

The specification of Unico System for the installation has demonstrated how this technology can form the core heating and cooling solution for a home renovation project based on renewable heat pump technology.
The property has undergone a complete renovation. Energy saving loft and cavity wall insulation was already installed and the owners wished to dispense with the ageing gas boiler, microbore pipework and wall hung radiators. These were to be replaced with a new system featuring renewables and electricity only. With the expectation of higher temperatures and hotter, less comfortable nights in the years to come, investment in an all in one system that can use renewable energy for heating, cooling, ventilation and indoor air quality throughout the year was the ideal solution.

The compatibility of the system with renewables was essential and a Daikin Altherma Low Temperature Split Air Source Heat Pump was selected as the matching energy source. The heat pump is linked to the space saving horizontal Unico 1218 Air Handling Unit situated in the loft and features variable fan speed motor, a Smart Control Board for precise airflow control and a Heat Pump Coil module. The main central duct connects to the air handling unit, feeds the flexible supply duct tubing before emitting conditioned air into the bedrooms through discreet round ceiling outlets.

To further maximise the energy efficiency of the installation, battery storage technology, running on low cost overnight tarrifs, stores electricity for lighter duty appliance power consumption during the day. To meet hot water demand precisely and exactly on time, an intelligent hot water tank has been installed.

The Unico System features air filtration to remove larger particulate from the indoor air. For additional continuous protection from airborne viruses and bacteria, complementary bi-polar ionisation technology has also been specified.

Space saving roof space installation

Aircraft Renovation loft space v2

Advantages

  • All year round heating and cooling solution
  • Convenient use of the loft space for the compact air handler, ductwork and flexible supply tubing is a key in retrofit renovation projects
  • Lightweight modular ductwork promotes safe, easy handling and time savings during installation
  • The air handler isolates noise and vibration with sound deadening insulation, allowing installation immediately above the main bedroom with no risk of noise disruption
  • The flow of air through the supply tubing and into the room through the ceiling outlets generates minimal noise
  • Wall space freed up with the removal of radiators
  • Once heated or cooled air enters the bedroom it creates a draught free, even environment with minimal temperature fluctuations
  • Removes 30% more humidity from the air compared with conventional heating and air conditioning systems, improving air quality and preventing the formation of damp and mould

Improve indoor air quality with the Unico System

Unico & Mid Devon Case Study Icons

Mid Devon District Council select Unico based on its innovative design

Mid Devon District Council select Unico based on its innovative design

Superior Comfort

Unico & Mid Devon Case Study Header

Installation background

  • Installation Date: Summer 2021
  • Property Type: Off gas one bedroom bungalow
  • Unico System: 1218 BL1 Blower Module, S.M.A.R.T. Control, Variable Speed EC Motor, 1218 CL1 Heatpump Coil Module & Ultraviolet Lighting System for air purification
  • Energy Source: Daikin Altherma EDLQ-CV3 air to water monobloc heat pump
  • Controls: Nest – Pro Learning Thermostat

The aim of this project was to provide a system that delivers efficient, high-quality heating, cooling and ventilation to an existing traditional build bungalow.

The system needed to be controllable, efficient, simple, effective and affordable.  The installation is required to be scalable, in terms of application and value whilst addressing issues of ventilation, indoor air quality and possible overheating within the property.

Discreet climate control

Unico & Mid Devon Case Study kitchen

Previous issues within the property

Unico & Mid Devon Case Study damp mould

Property & occupants

  • Householders in this property type are more likely to be elderly and less mobile
  • Many householders have downsized to a smaller property, and with a lifetime of possessions means that space can be at a premium.  Radiators and panel heaters may become obstructed and this impedes heating and the flow of air within the property.
  • Costly and inefficient heating systems are less likely to be used.  This results in under heated, poorly ventilated properties that may be subject to damp and mould.
  • Householders often create conditions that are likely to cause issues., ie, don’t open windows, cook without lids, don’t close the door to the bathroom, hang wet washing by heaters, etc.

To meet these challenges, they turned to the Unico System.

Solution

Mid Devon District Council selected the Unico SDHV system based on its innovative design which delivers conditioned and enhanced indoor air quality.  The system integrates a humidistat controlled MEV and maintains an exchange of fresh air to the property.  The advantage of being able to locate the distribution system in the roof space.  The longer term operational benefits include the price point, the integration of known technologies (ASHP) and the potential for future installations to be delivered by the DLO.  The enhanced environmental controls maintain healthy households, reducing pressure on the local NHS and GP surgeries.  We also expect the system to be fundamental in helping with the reduction of disrepair claims as a result of damp and mould.

Space saving roof space installation

Unico & Mid Devon Case Study Installation
Unico & Mid Devon Case Study control
Nest Pro Learning Controller
Unico & Mid Devon Case Study air filtration
Return Air Grill for air filtration
Unico & Mid Devon Case Study
Unobtrusive outlets
Unico & Mid Devon Case Study outlet2
Outlets which colour matching to interior

Improve indoor air quality with the Unico System

Unico & Mid Devon Case Study Icons

Fifteen Restaurant Cornwall

Fifteen Restaurant Cornwall

Superior Comfort

Unico System fifteen Restaurant

Benefits

  • Even, draft-free temperatures
  • Quiet operation
  • Zone control options
  • Discreet supply outlets
  • Flexible design and installation

“If there were a Michelin rating for comfort, the Unico System would undoubtedly receive 3 stars”.

Jamie Oliver, of Britain’s Channel 4 documentary series “Jamie’s Kitchen”, began the Fifteen restaurant brand in 2002 with a flagship location in London. The name is derived from the celebrity chef’s apprenticeship program of training fifteen disadvantaged youth in the culinary arts and service management industries.

Unico System Fifteen Restaurant
Unico System Fifteen Restaurant Interior

Overview

Fifteen in Cornwall overlooks the beach at Watergate Bay on the north coast of the county of Cornwall, UK. The restaurant offers slick, traditional Italian cuisine with a Cornish twist. The location features a high, open ceiling design and casual-chic interior with murals of pastel-colored surf scenes adorning the walls.

The developers of the property were determined to create a visual style for this new location as unique as that of Mr. Oliver’s approach to food. While adamantly determined not to copy the “faux-industrial” look of exposed metal ducting that has become so common in commercial locales, they were committed to adding a heating and cooling system that could deliver superior comfort as well as disappear into the background.

To meet these challenges, they turned to the Unico System.

Strategy

The very features that make the Unico System attractive to the old home and custom home residential markets make it an optimal choice for commercial-built applications as well. The modular air handling equipment, smaller main trunk ducting and flexible supply ducting allow it to fit where conventional heating and cooling systems simply cannot.

Air handlers and the main ducting were situated outside of the main dining area and Unico System supply tubes were snaked through the sloped ceiling’s cavities to discharge conditioned air from the high side walls. The versatility of the Unico System’s terminating outlets allow it to fit seamlessly into Fifteen’s open design. Available in a slotted, 1-inch x 8-inch configuration, this version was chosen over the round 2-inch inner diameter option as it better blended with the interior’s distinctive murals.

Air distribution with the Unico System provides two additional benefits. Conditioned air gently circulates within the room’s existing air currents, eliminating the drafts that often create guest discomfort in restaurants. This gentle mixing also eliminates the phenomena of stratification (that is, alternating hot and cold spots) associated with conventional forced air systems, instead maintaining even temperatures throughout the dining room.

Results

Not only does the Unico System practically disappear within the interior design of Fifteen, but guests and staff alike are kept comfortable during the ever-changing seaside weather. Kitchens can be frightfully hot places in which to work but, due to the open design plan and the superiority of the Unico System’s air delivery method, staff have remarked that Fifteen’s kitchen is the most comfortable they’ve ever experienced.

On the other hand, with hard-to-see visual evidence, no drafts and even temperatures, guests are hardly aware of the heating and cooling system and are not distracted from enjoying a wonderful, healthy meal in a beautiful setting.

If there were a Michelin rating for comfort, the Unico System would undoubtedly receive 3 stars.

Historic Barn Berkshire

Historic Barn Berkshire

The Perfect Heating Solution for Architecturally Significant Homes

Unico System - Historic Barn Berkshire - Image 1

Summary

Installation Date: September 2014
Unico System: 14kW with Hydronic Coil and 30 room outlets
Energy Source: 14kW Panasonic Air to Water Heat Pump
Controls: 5 x Jackson Systems Room Thermostats and Dampers, 1 x Zone Control Panel

Benefits

  • Even temperatures across the rooms
  • NR20 Sound Level Rating. Very quiet
  • Zone control options
  • Discrete supply outlets
  • Flexible design and installation
  • EC Variable Speed Control
Unico System - Historic Barn Berkshire - Image 2

Property Owner

“We are extremely impressed with how quickly the system heats the rooms on a cold day. The outlets are discreet and provide a very even room temperature, they have also allowed us to maximise our wall space for furniture…”

Ed Cyster

Background

Unico was specifically chosen by the client to provide a heating only solution for all rooms on the upper floor which would not compromise the architectural integrity of this historic building.

Due to the age and construction of the property, the installation of a conventional heating system was not possible and the owners wanted to maximise the limited wall space available for furniture.

After researching “Warm Air” systems, they found the Unico System to provide a design and solution for heating the Upper Floor of the property.

Solution

A 14kW Unico System is installed throughout the loft area to provide heating to three bedrooms including the Master Suite, Hallway gallery and a small annex with an additional bedroom and Kitchenette. The flexible supply ducts connected to discreet, ceiling mounted outlets provide the perfect comfortable environment to the entire Upper Floor.

The Unico System is connected to a Panasonic Air to Water Heat Pump which provides energy efficient heating whilst at the same time allowing the owners to benefit from the Renewable Heat Incentive payment scheme.

The system provides individual temperature control to five separate zones with variable speed operation.

The Unico System EC fan motor along with the heat pump provides extremely low running costs in this off-grid location.

Self Build Exmouth

Self Build Exmouth

Cool Atmosphere for a Grand Design

Unico System - Exmouth Self Build - Image 1

Benefits

  • Even temperatures across the rooms
  • Very quiet
  • Discrete supply outlets
  • Flexible design and installation

“We decided to have air-conditioning at a very late stage of the build and presented Unico with a serious challenge! They concealed the system exceptionally well and, with so much glazing in the property, it is inconceivable to see how we could have managed without it…”

Unico System - Exmouth Self Build - Image 2

Property Owner

“We believe we ended up with the Rolls Royce of systems. The system is very quiet – you would hardly know it was there.”

Julie Veysey

Background

Built on the beachfront at Exmouth, this property has a Unico System at its core and was featured on the Grand Designs television programme.

With a large frontage constructed from glass, the property needed a comfort system that would provide responsive and effective cooling and heating.

Solution

A 14kW Unico System is installed throughout the loft area to provide heating to three bedrooms including the Master Suite, Hallway gallery and a small annex with an additional bedroom and Kitchenette. The flexible supply ducts connected to discreet, ceiling mounted outlets provide the perfect comfortable environment to the entire Upper Floor.

The Unico System is connected to a Panasonic Air to Water Heat Pump which provides energy efficient heating whilst at the same time allowing the owners to benefit from the Renewable Heat Incentive payment scheme.

The system provides individual temperature control to five separate zones with variable speed operation.

The Unico System EC fan motor along with the heat pump provides extremely low running costs in this off-grid location.

Lancaster Gate Apartments

Lancaster Gate Apartments

Luxury Cooling & Heating

Unico System - Lancaster Gate Apartment - Image 1
Unico System - Lancaster Gate Apartment - Image 2

Benefits

  • Energy Efficient
  • Even temperatures across the rooms
  • Very quiet
  • Discrete supply outlets
  • Flexible design and installation



“The Unico System provides design freedom to decorate an interior without having to consider the clutter of radiators or pipework.”

“There is less than 2°C temperature difference floor to ceiling.”

“The system is suitable for installation benefitting all types of rooms found in an apartment.”

Unico System - Lancaster Gate Apartment - Image 4
Unico System - Lancaster Gate Apartment - Image 3

Background

A twenty one mini-duct Unico System with high performance central cooling and heating systems has been installed at new luxury apartments in Lancaster Gate, London.

This is a high profile development with apartments expected to sell at the higher end of the London market.

Solution

The Unico System delivers both heating and air conditioning through small unobtrusive outlets at ceiling level. The whole system operates from a heat pump and overall it delivers 3kw of energy for every 1kw input, making it extremely energy efficient.

To provide both air conditioning and heating using a heat pump as the source, the Unico System features a heat pump coil. Air is pulled across the coils to provide either cool or warm air. Each apartment has its own system, whilst some of the larger apartments have two.

Residential Belgravia

Residential Belgravia

The Most Discreet Heating and Cooling System for High-End Residential Homes

Unico System - Residential Belgravia Property - Image 1

Summary

Installation Date: January 2013
Unico System: 2 x 14kW with DX coil and 60 room outlets
Energy Source: 2 x 14kW Mitsubishi Electric Inverter Heat Pumps
Controls: Fully integrated with Crestron BMS system

Benefits

Even temperatures across the rooms
NR20 Sound Level Rating
Very quiet Zone control options
Discreet supply outlets
Flexible design and installation
EC Variable Speed Control

Unico System - Residential Belgravia Property - Image 2

Blue Interiors

“To see a design on paper is one thing, to actually fit it in and not see it is another. The supply outlets fit seamlessly into the space and the response of the system is extremely quick and impressive.”

Rod Pyke

Background

The owners of this prestigious London property tasked their project manager to find the most discreet heating and cooling system which would not compromise the new interior and architectural features of this period property.

After researching “discreet air conditioning”, he discovered the Unico System which was perfect for this new living space.

During the full renovation, the ceiling was dropped slightly to allow access for the main ducts. This provided enough scope to design the system into an extremely challenging building.

Solution

Due to restraints in the building, the whole system was first designed and modelled in 3D to ensure every component would fit into the space.

Two 14kW Unico Systems were installed in the loft space with main ducts running to each of the four floors below. All supply outlets were plastered into the ceilings, leaving just discreet 50mm holes delivering the conditioned supply air.

Return air from the rooms was done through bespoke transfer grilles above the doors and returned to the Unico Systems via the central staircase.

Both Unico Systems are interfaced with Mitsubishi Electric heat pumps and controlled through the Crestron BMS System.

The Unico System provides the perfect heating and cooling solution for this high end residential property.

Truman White House

Truman White House

Historic Renovation

Benefits

  • Electric Heat
  • Hot Water Heat
  • Chilled Water Loops
  • Steam Heat
  • Radiant Floor Heat
  • Inadequate or No Ductwork
  • Limited Space
  • Inadequate Cooling on Upper Levels
  • Baseboard Heat
  • Radiator Heat
Unico System - Truman White House
Unico System - Truman White House
Unico System - Truman White House

Background

Built in 1890 as the first officer’s quarters on the submarine base naval station, the Harry S. Truman Little White House in Key West, FL, has entertained presidents and dignitaries for more than 63 years, ever since President Truman established the property as his winter vacation home in 1946. Frequent visitors to the home include Thomas Edison, Edward Hayden, Harry S. Truman, John F. Kennedy, Jimmy Carter, Colin Powell and Bill Clinton. The home stands as a magnificent, historical piece of architecture that serves as a museum and, at times, receives government officials for meetings and dinners.

Maintaining the historical character of the home was instrumental in the restoration process. “More than 85 percent of the historic fabric remains intact, so it was very important that we select the right HVAC system to protect the structure, our original furnishings and documentary collections. That’s why we chose The Unico System of St. Louis,” said Bob Wolz, executive director of Truman House.

The home needed an HVAC system to protect the irreplaceable artifacts, and the conventional system installed in 1990 was not doing the job. The system allowed humidity to attack the museums’ items and did not cool the 9,000-square-foot home evenly. The contractor restoring the home, Refri Air, Inc. of Fort Lauderdale, recommended The Unico System as a perfect solution to this home’s heating and cooling needs.

Strategy

The installation of The Unico System took eight weeks to complete. The massive project involved outfitting the home with 300 feet of special 10-inch round PVC duct, installing custom flat and circular outlets in the floors and ceilings of the home and putting in the system itself. To allow flexibility to the cooling and heating of the home, the house is split in five zones with five air handling units and four UniChillers, completely self-contained air-to-water heat pump chillers that use chilled water circuit instead of refrigerant inside the house.

A traditional system would have required additional condensing units to achieve zoned cooling, whereas The Unico System allows individual UniChillers to work in a single area without the entire system running at full capacity. The duct was installed in the attic and the 18-inch crawl space under the home. To ensure the system was virtually undetectable, contractors ran electrical connections from the attic to the crawl space and out to the chiller plant area, hiding the ductwork with customised fittings.

Once the system was in place, a specially designed UTrap was connected to the air handling in the attic for 30 percent more humidity removal throughout the home. This extra piece was a necessity to ensure all important items present in the museum would be protected for years to come.

Solution

The Harry S. Truman Little White House presented a unique set of challenges that were met with the installation of The Unico System. “The uniform temperature throughout the house is pleasant to guests and staff and protective for our artifacts,” said Wolz. The new Unico System gives peace of mind to historians and visitors alike, who can be assured that the home, which has stood for 120 years, will remain a place to enjoy historical ambience and objects in a cool, comfortable setting.

Easy Hotel Climate Control

Easy Hotel Climate Control

Commercial Climate Control

Unico System Easy Hotel

Benefits

  • Even, draft-free temperatures
  • Quite operation
  • Zone control options
  • Discreet supply outlets
  • Flexible design and installation
  • Ventilation, heating and cooling

“Simple comfort, great value” might easily extend itself to the Unico System as well.”.

John Hearn, Head of Property Development for the easyHotel on Old Street in Barbican, had a problem: “The existing conventional ducted air systems were not able to accurately control temperature and we started getting complaints from our guests.” Quite a problem, indeed, when your motto is ‘’simple comfort, great value.”

Unico System easyhotel
Unico System easyhotel

Overview

easyHotel Group positions its properties as “super budget hotels,” maintaining inexpensive room rates by asking guests to sacrifice a little luxury space by offering smaller-sized rooms. easyHotels offer no frills – no on-site restaurants, bars, gyms, business centers or the like – allowing management and staff to focus on the maintenance and cleanliness of their utilitarian-yet-elegant accommodations.

Indoor climate control is a key factor to guest comfort. Two of easyHotel’s London locations, the flagship hotel in South Kensington and the Old Street site, use the Unico System to supply heating and cooling to their guests. The Unico System’s small duct attributes are especially suited to the budget hotel chain’s needs.

Strategy

Smaller rooms means smaller areas in which to house mechanical systems. In contrast to the bulky, rigid ducting required by conventional indoor systems, the Unico System’s main trunk line takes up one-third the space of traditional systems and its flexible 2-inch inner diameter supply tubing snakes through wall cavities, allowing conditioned air to be delivered specifically where it’s needed. Additionally, round Unico System outlets are smaller, more aesthetically pleasing and less noticeable than conventional grilles. They deliver quiet, draft-free indoor comfort – the guests don’t even know that they are there.

After a thorough evaluation of the Barbican site, installing contractor KBS Services removed the existing air handling, condensing units and controls and replaced them with eight Unico Systems with zone control to deliver indoor comfort to the hotel’s three floors and 95 rooms.

Similarly, the Unico System’s low profile made it the optimal choice for the concern’s first London venture in Kensington. The hotel in Lexham Gardens features 34 rooms within 5 floors of a converted row house, and installer HVAC Group of London recommended the Unico System specifically due to its smaller size and ability to provide superior comfort.

Results

easyHotel South Kensington’s Roger Powell states, “We needed the best for our customers within very tight budgets. The Unico System has given us just that – the best comfort solution and real cost savings over conventional systems.” The use of heat pump technology coupled with the Unico Systems’ long life expectancy also provides significant life-cost savings. Adds Mr. Powell, “The system also gave us the ability to ventilate effectively without employing a separate system” further reducing costs.

At the Old Street location, Mr. Hearn notes that the complete reconfiguration of control strategy through new thermostats and multiple temperature sensors “allows zone temperatures to be controlled by hotel management and [we] typically maintain a constant temperature of 72°F in each room” completely eliminating guest complaints.

“Simple comfort, great value” might easily extend itself to the Unico System as well.
